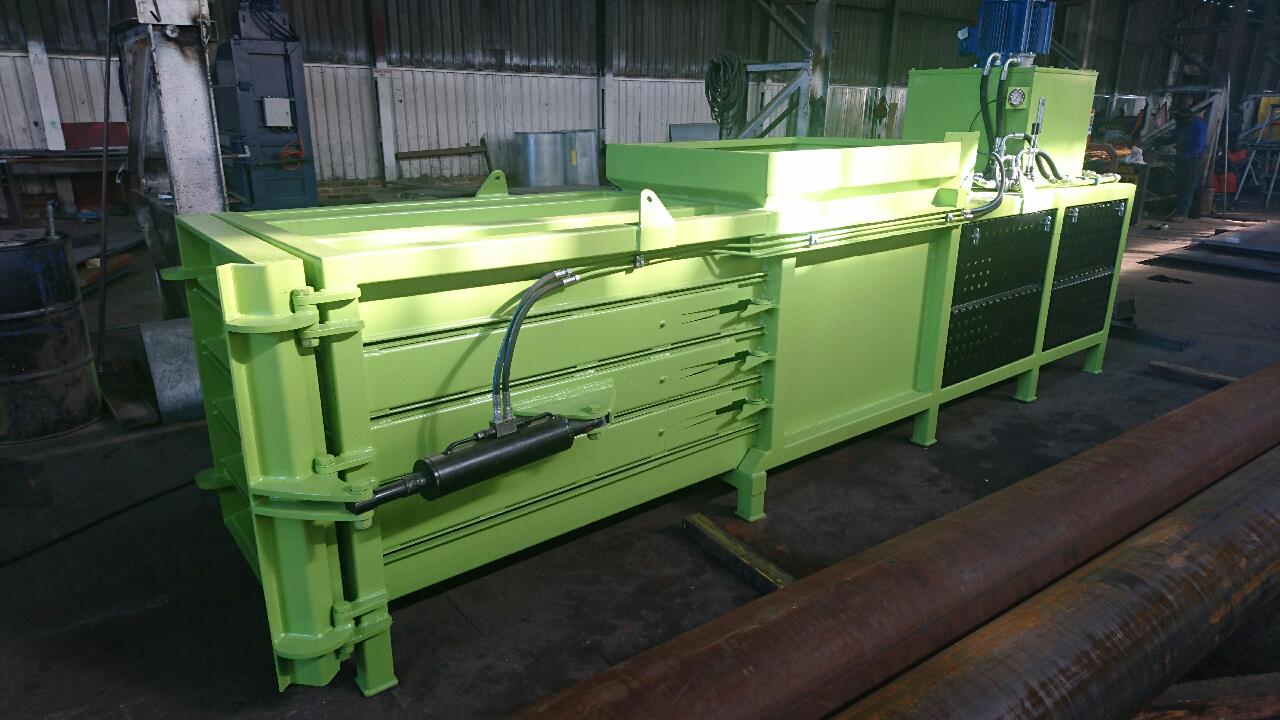

RMB-28D HORIZONTAL BALER
The RMB-28D Horizontal Baler is designed to produce a bale approximately 900 x 800 x 1400 in size with a weight of 300-450 kg's (depending on material) and handle approximately 300-400 tons per month (24 hours per day). The RMB-28D is designed to be manually loaded, tied and discharged.
Baler is fitted with duel gear pumps, manual lever valve and hydraulic oil cooler as standard.
Wear plates on side, floor and roof of baling chamber
Platen fitted with four rollers and guides
Platen and chamber block fitted with a cutting blade and cutting edge.
SPECIFICATION
|
Series |
RMB-28D |
|
Type |
Horizontal – Top Loading |
|
Charge Chamber opening size |
910 x 810mm |
|
Bale size |
900 x 800 x 1400mm |
|
Bale weight / mass |
300 to 450kg (Dependent upon product) |
|
Number of bale ties |
4 |
|
Bale Ejection |
Automatic |
|
Cycle time |
Automatic - 26 seconds (No Load) |
|
Ram Thrust |
24 Tons |
|
Normal Working Pressure |
200 bar |
|
Pump Type |
Dual Gear Pumps |
|
Rated Output |
300 - 400 Tons per month |
|
Pump Size |
38cc & 8cc/rev, 63 l/min |
|
Motor Size |
11KW |
|
Cylinder Specifications (Bore x Rod x Stroke) |
125 x 90 x 1200mm |
|
Hydraulic Oil Cooler |
Standard |
|
Oil Tank Capacity |
240 Litres |
|
Shipping Weight |
Approx. 3700 kg |
|
Electrical |
|
|
Electrical Supply Requirements |
380V 3 Phase 4 Pole 50 Hz |
|
Power Point |
5 Pin Plug & Socket 32 amp |
|
Dimensions |
|
|
L - Length |
4200 mm |
|
W - Width ( Including the Chute) |
1386 mm |
|
H - Height ( Including the Chute) |
1950 mm |
|
Country of Origin |
Manufactured in South Africa |
All specifications are for indicative purposes only and subject to change without prior notice
