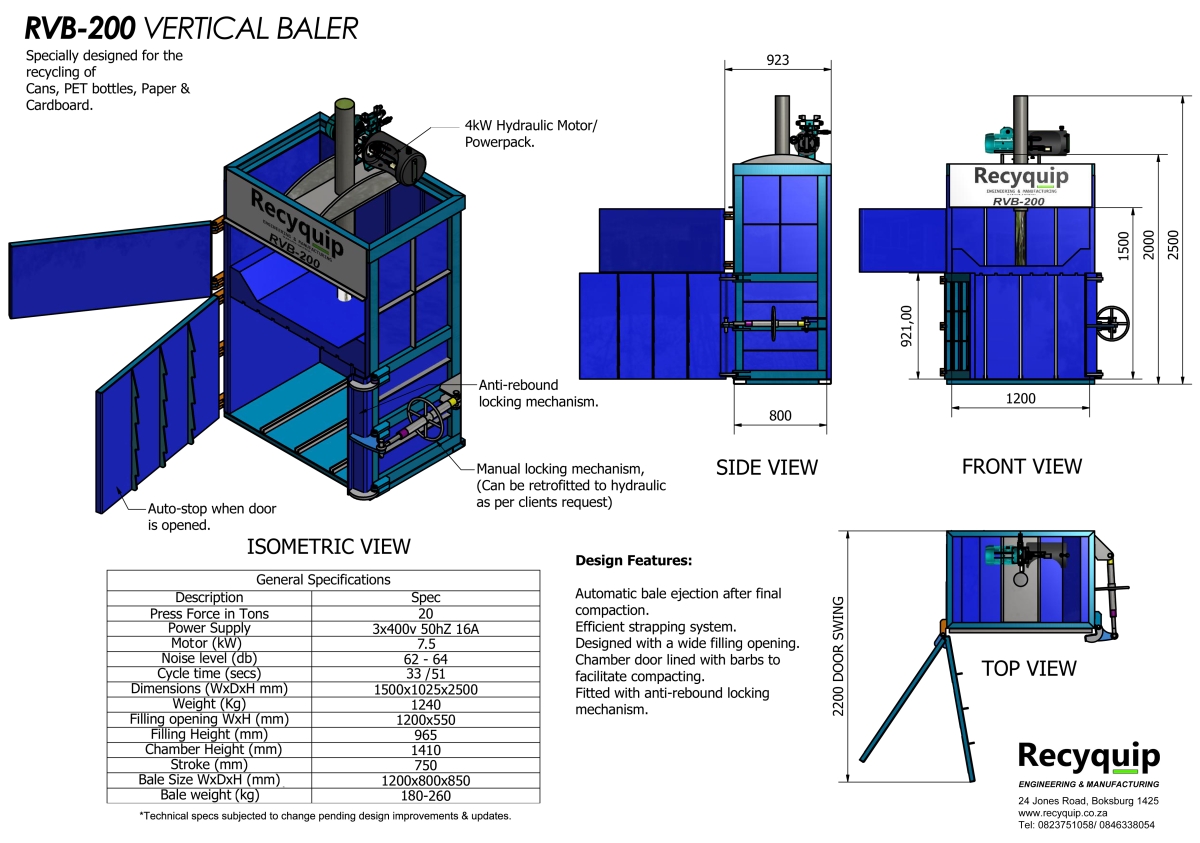

RVB-20 Vertical Baler
The RVB-20 is a highly flexible 20 ton force machine and can be used in many different
locations eg. larger retail shops, stores and many different industrial applications.
This baler has a wide loading opening for handling larger boxes and other waste products.
The baling chamber has rows of barbs to prevent compacted material from expanding
and popping out of the baling chamber.
The RVB-20 is extremely easy to operate and the design, workmanship and quality of materials ensures
low maintenance costs.
SPECIFICATION
|
Series |
RVB-20 |
|
Type |
Vertical – Top Loading |
|
Charge Chamber opening size |
550 x 1200mm |
|
Bale size (L x W x H) |
1200 x 800 x 850mm |
|
Bale weight / mass |
180 to 260kg (Dependent upon product) |
|
Bale Ejection |
Automatic |
|
Cycle time |
Automatic - 54 seconds (No Load) |
|
Ram Thrust |
20 Tons |
|
Normal Working Pressure |
180 bar |
|
Pump Type |
Fixed Displacement Gear pump |
|
Rated Output |
30 - 60 Tons per month |
|
Pump Size |
14cc/rev, 31 l/min |
|
Motor Size |
7.5KW |
|
Cylinder Specifications (Bore x Rod x Stroke) |
120 x 80 x 750mm |
|
|
|
|
Oil Tank Capacity |
150 Litres |
|
Shipping Weight |
1240 kg |
|
Electrical |
|
|
Electrical Supply Requirements |
380V 3 Phase 4 Pole 50 Hz |
|
Power Point |
5 Pin Plug & Socket 32 amp |
|
Dimensions |
|
|
W – Width |
1500 mm |
|
D - Depth |
1025 mm |
|
H - Height |
2500 mm |
|
Country of Origin |
Manufactured in South Africa |
