RVB-30 Vertical Baler

The RVB-30 is a highly flexible 30 ton force machine and can be used in many different
locations eg. larger retail shops, stores and many different industrial applications requiring a
heavier more dense bale.

This baler has a wide loading opening for handling larger boxes and other bulky waste products.
The baling chamber has rows of barbs to prevent compacted material from expanding
and popping out of the baling chamber between compaction cycles.

The RVB-30 is extremely easy to operate and the design, workmanship and quality of materials ensures
low maintenance costs.

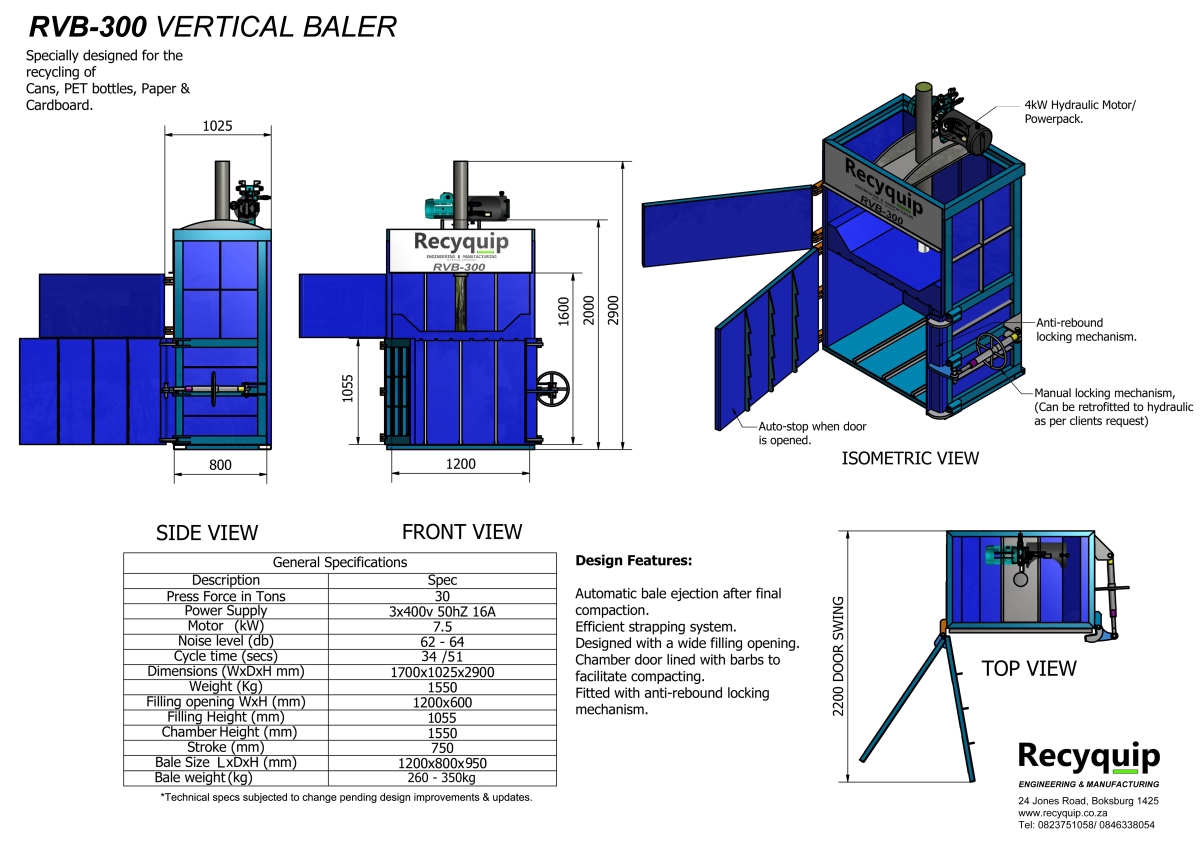

rvb-300 vertical baler catalogue brochure





Vertical – Top Loading

Charge Chamber opening size

600 x 1200mm

Bale size (L x W x H)

1200 x 800 x 950mm

Bale weight / mass

260 to 350kg (Dependent upon product)

Bale Ejection


Cycle time

Automatic - 51 seconds (No Load)

Ram Thrust

30 Tons

Normal Working Pressure

180 bar

Pump Type

Fixed Displacement Gear pump

Rated Output

60 - 80 Tons per month

Pump Size

14cc/rev, 21 l/min

Motor Size


Cylinder Specifications

(Bore x Rod x Stroke)

140 x 90  x 750mm



Oil Tank Capacity

63  Litres

Shipping Weight

1550 kg


Electrical Supply Requirements

380V 3 Phase 4 Pole 50 Hz

Power Point

5 Pin Plug & Socket 16 amp


W – Width

1700 mm

D - Depth

1025 mm

H - Height

2900 mm

Country of Origin

Manufactured in South Africa
