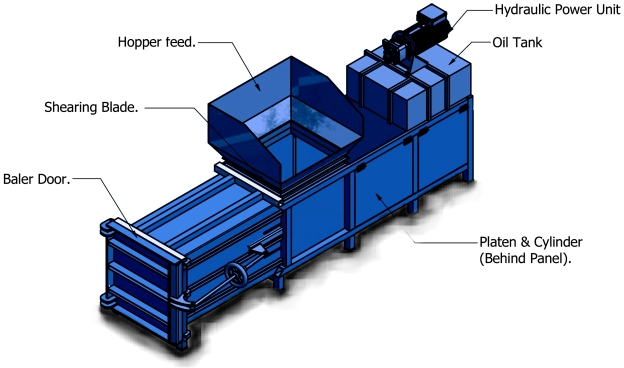

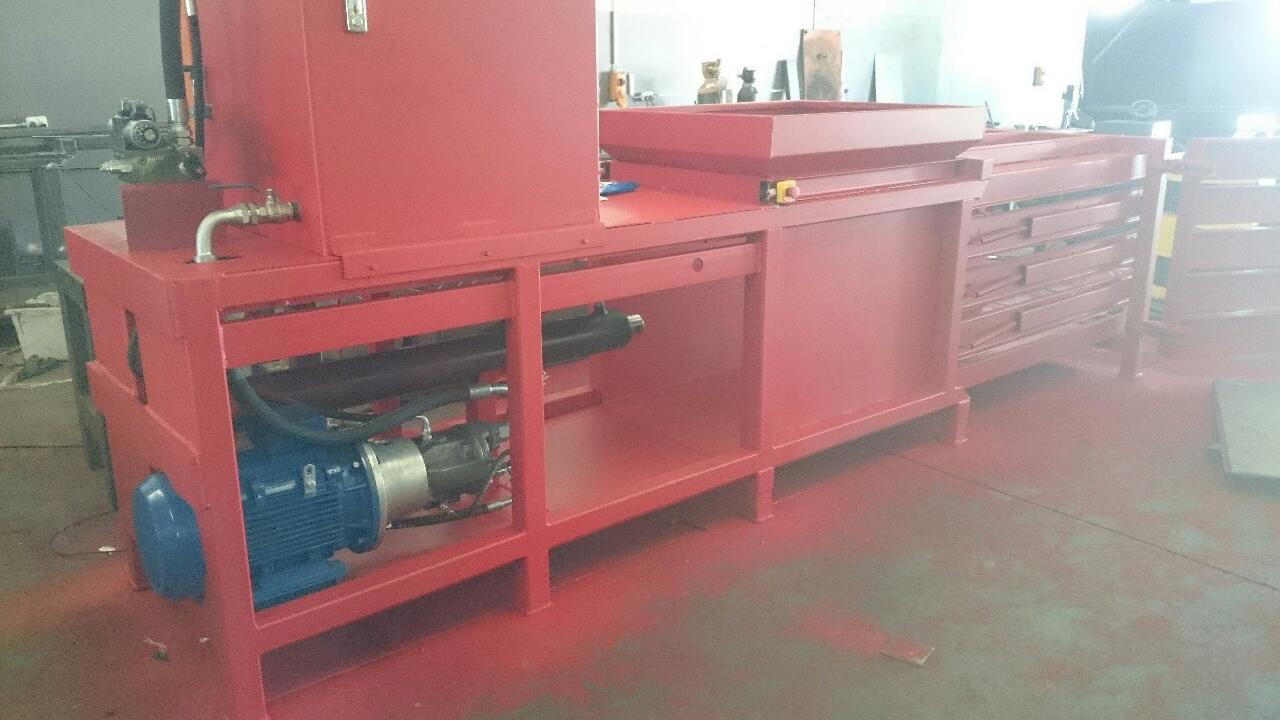

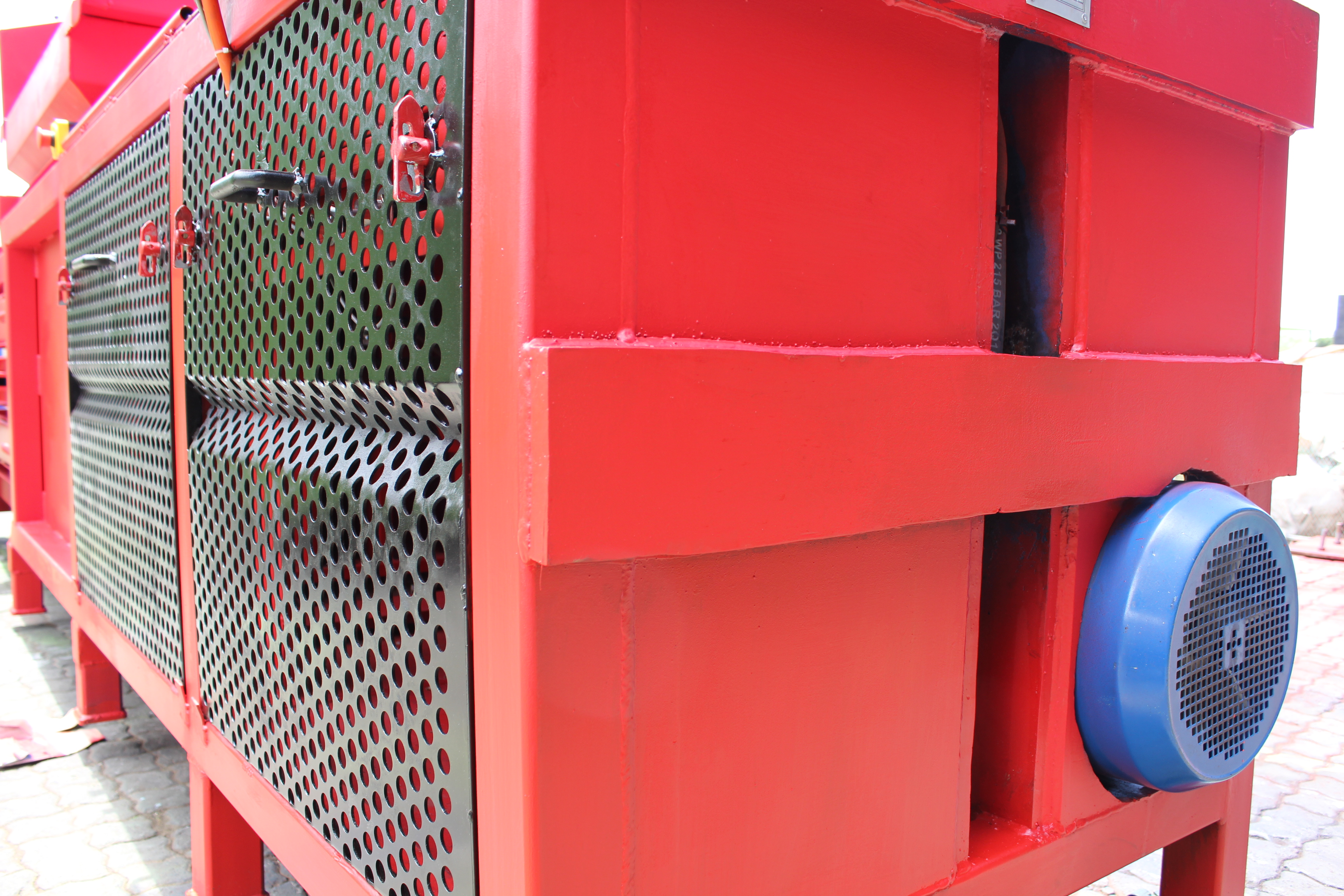

RMB-28DA HORIZONTAL BALER



The RMB-28DA Horizontal Baler is designed to produce a bale approximately 900 x 800 x 1400 in size with a weight of 300-550 kg's (depending on material) and handle approximately 300-400 tons per month. The RMB-28DA is designed to be manually loaded, tied and discharged.

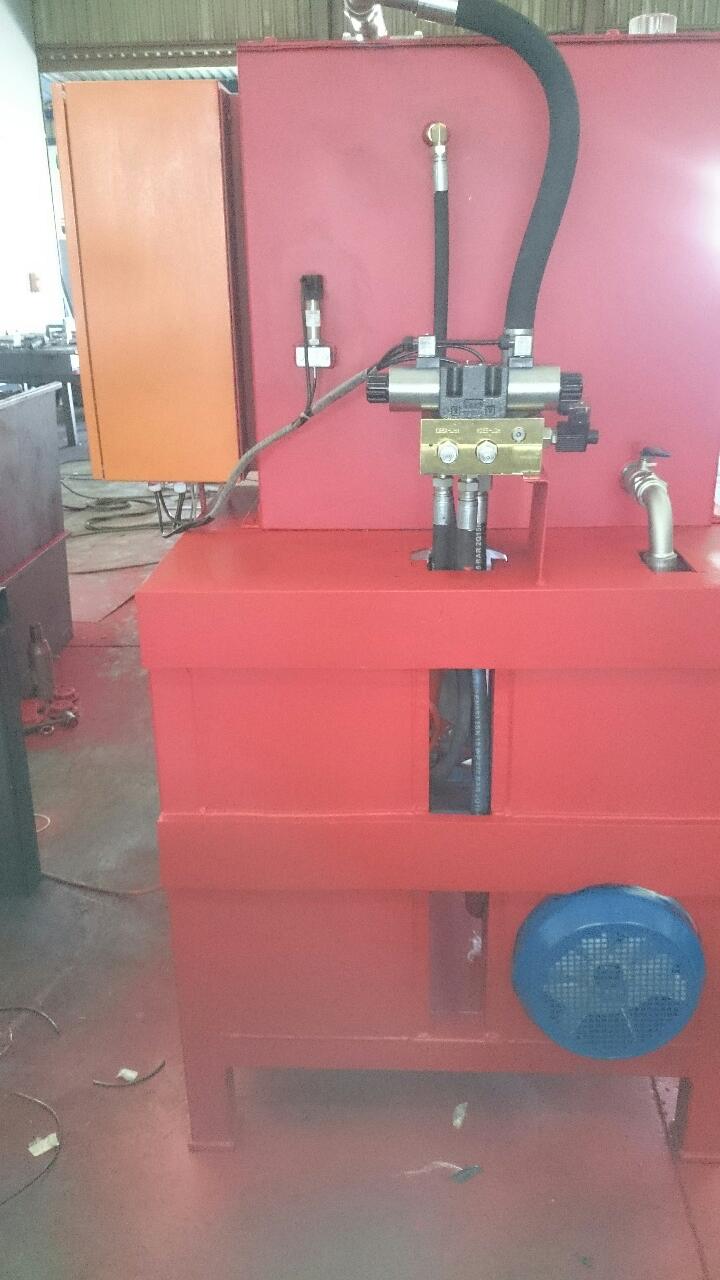

Baler fitted with a variable displacement piston pump and controller as standard.
Wear plates on side, floor and roof of baling chamber
Platen fitted with four rollers and guides
Platen and chamber block fitted with a cutting blade and cutting edge.

RHB-20-D Baler Spec

SPECIFICATION


Recyquip Horizontal Baler - RHB-28D Specifications



Series

RMB-28DA

Type

Horizontal – Top Loading

Charge Chamber opening size

910 x 810mm

Bale size

900 x 800 x 1400mm

Bale weight / mass

300 to 550kg (Dependent upon product)

Number of bale ties

4

Bale Ejection

Automatic

Cycle time

Automatic - 28 seconds (No Load)

Ram Thrust

28 Tons

Normal Working Pressure

200 bar

Pump Type

Piston pump with pressure, flow & torque compensation

Rated Output

300 - 400 Tons per month

Pump Size

52cc/rev, 82.7 l/min

Motor Size

22KW

Cylinder Specifications

(Bore x Rod x Stroke)

125 x 90 x 1200mm

 Hydraulic Oil Cooler

Standard

Oil Tank Capacity

300 Litres

Shipping Weight

Approx. 3700 kg

Electrical

Electrical Supply Requirements

380V 3 Phase 4 Pole 50 Hz

Power Point

5 Pin Plug & Socket 32 amp

Dimensions

L - Length

4200 mm

W - Width ( Including the Chute)

1386 mm

H - Height ( Including the Chute)

1950 mm

Country of Origin

Manufactured in South Africa

          All specifications are for indicative purposes only and subject to change without prior notice
