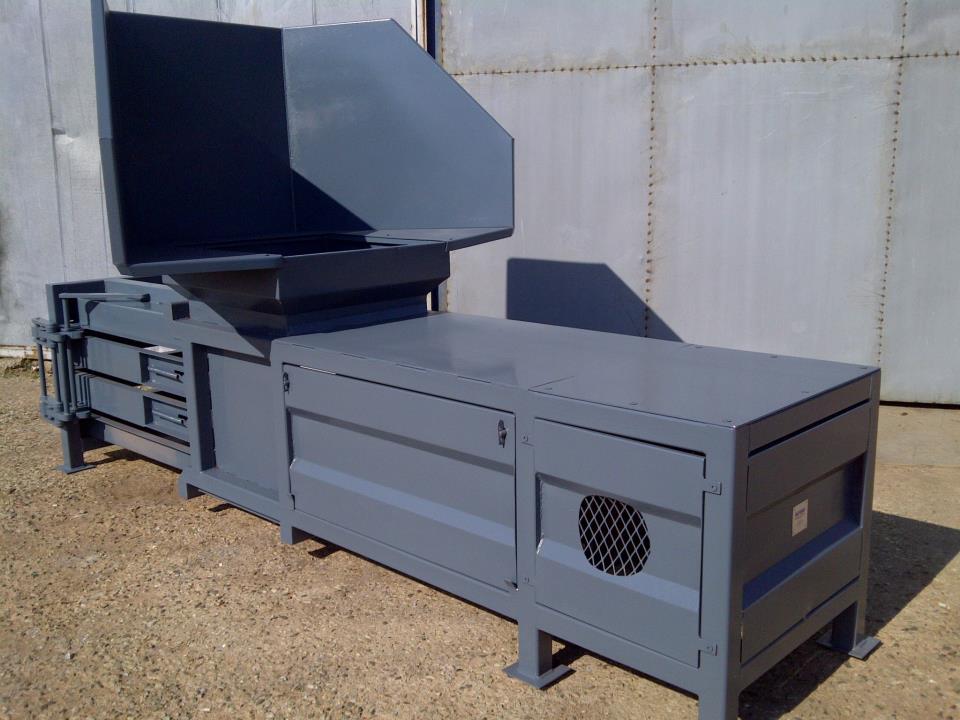

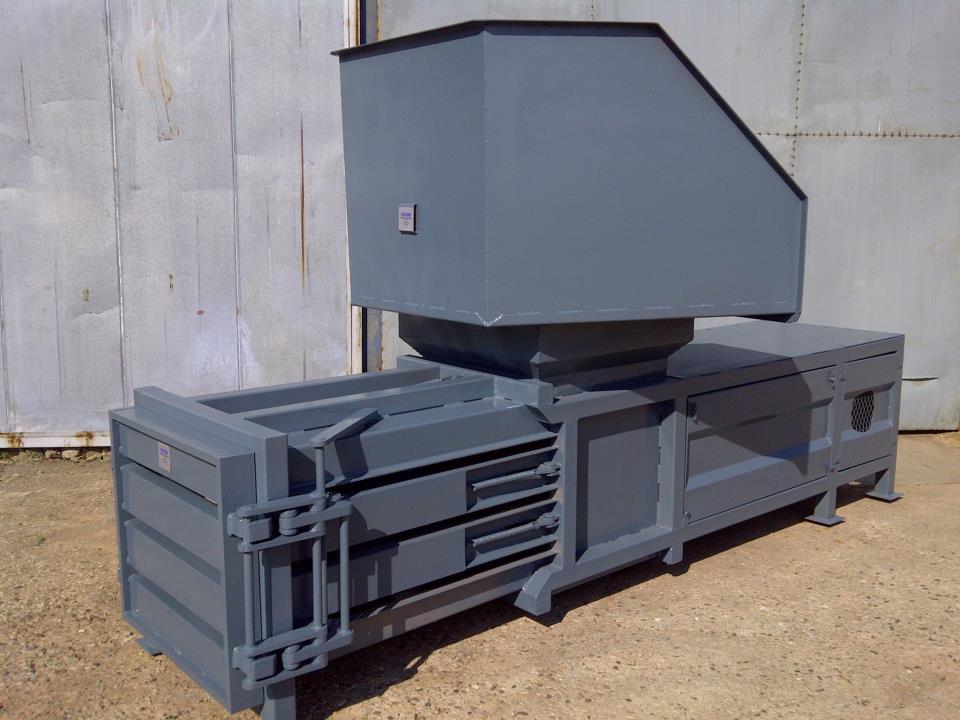

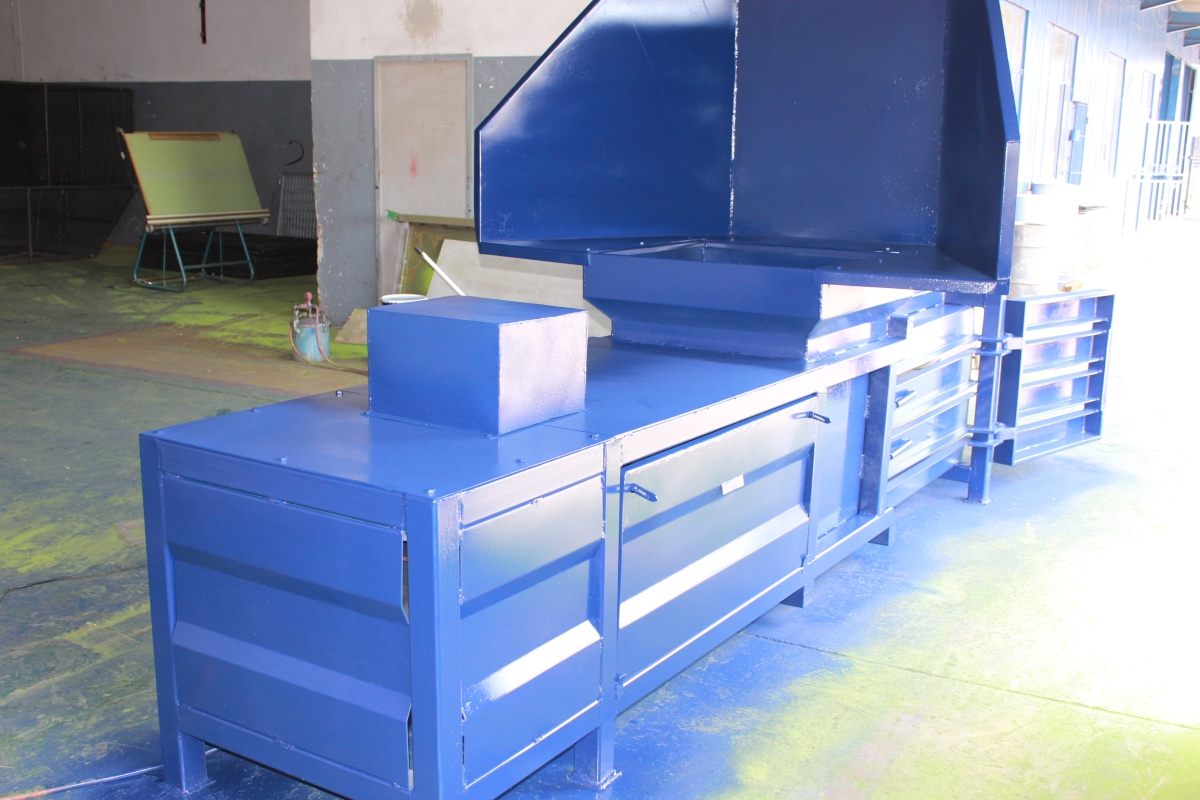

RMB-15D HORIZONTAL BALER



The RMB-15D Horizontal Baler is designed to produce a bale approximately 700 x 700 x variable in size with a weight of 110-200 kg's (depending on material) and handle approximately 50-75 tons per month. The RMB-15D is designed to be manually loaded, tied and discharged.

SPECIFICATION


Technical Specifications

Mechanical

Series

RMB-15D

Type

Horizontal – Top Loading

Charge Chamber opening size

 700 x 700mm

Bale size

700 x 700 x + - 1200mm

Bale weight / mass

110 to 200kg (Dependent upon product)

Bale Ejection

Manual

Cycle time

Automatic - 18 seconds (No Load)

Ram Thrust

16 Tons (adjustable)

Normal Working Pressure

180 bar

Pump Type

Fixed displacement gear pump

Rated Output

50 - 70 Tons per month

Pump Size

 14cc/rev, 291/min

Motor Size

7.5KW

Cylinder Specifications

Bore x Rod x Stroke

 100 x 65 x 810mm





Oil Tank Capacity

100 Litres

Shipping Weight

 Approx. 1500 kg

Electrical

Electrical Supply Requirements

380V 3 Phase 4 Pole 50 Hz

Power Point

5 Pin Plug & Socket 32 amp

Dimensions

L - Length

2700 mm

W - Width ( Including the Chute)

1286 mm

H - Height ( Including the Chute)

1750 mm

Country of Origin

Manufactured in South Africa

                                                                                                                   All specifications are for indicative purposes only and subject to change without prior notice

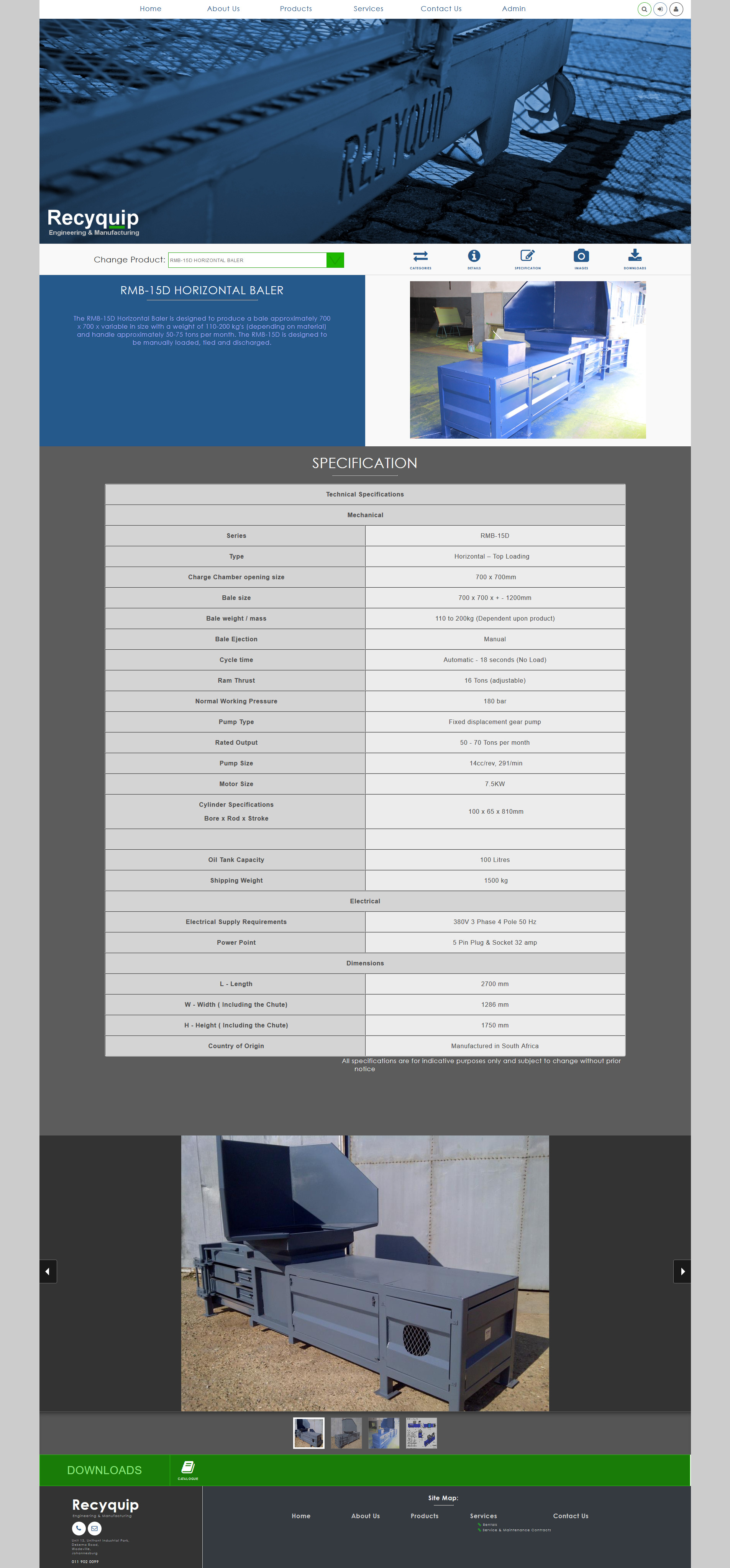

  • RMB-15D Horizontal Baler Catalog
